Home » HAWS 8317CTFP AXION - Fully Insulated Emergency Safety Shower
HAWS

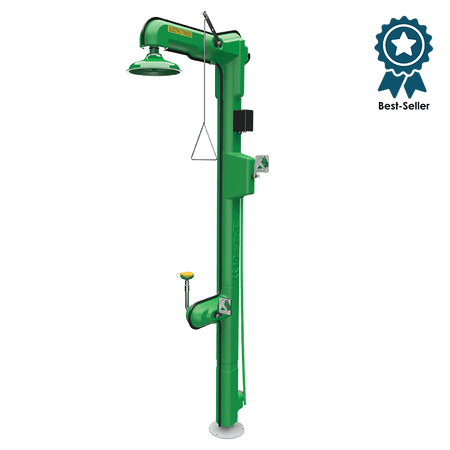

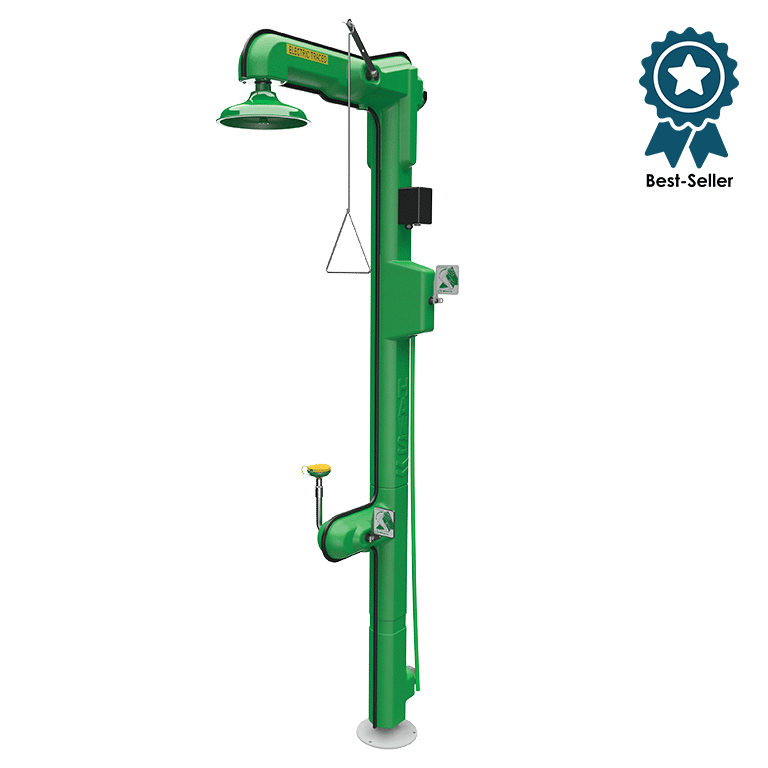

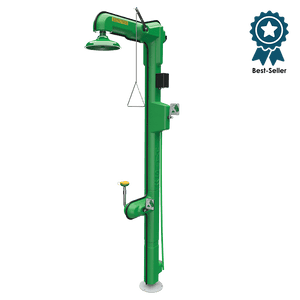

HAWS 8317CTFP AXION - Fully Insulated Emergency Safety Shower

In stock
SKU: 10004782
Compliant to EN 15154 and ANSI Z358.1 standards.
AXION® technology ensures a gentle, compliant water flow for effective eye, face, and body rinsing.
Freeze-protected down to -34 °C with cable heating and insulation
Want to order in bulk? Reach out to our experts at hello@thelockbox.ch.
€6.751,95

The Haws® 8317CTFP AXION is a cable-heated, fully insulated emergency safety shower built for extreme cold environments down to -34 °C. With over 1,000 installations globally, it offers proven reliability for high-risk industrial sites requiring freeze-protected safety equipment.

This combination unit includes the patented AXION® drench shower and eyewash system, delivering a soft, compliant water flow for full-body, eye, and face rinsing. The unit also features an additional body spray hose for enhanced rinsing capability, an automatic bleed valve for freeze protection, and an ambient temperature thermostat to minimize energy usage while maintaining system readiness.

Recommended for chemical plants, ports, oil and gas sites, heavy industry, and remote storage facilities, the 8317CTFP AXION complies with both EN 15154 and ANSI Z358.1 standards and is available with optional ATEX certification for explosive zones.

Key Features

  • Cable-heated and insulated system for operation down to -34 °C
  • AXION® drench shower and eyewash provide uniform, compliant water flow
  • Ambient temperature thermostat for energy-efficient freeze protection
  • Automatic bleed valve ensures operation even during power failure
  • Self-draining eyewash prevents water accumulation and freezing
  • Includes body spray hose for additional rinsing flexibility
  • Factory-tested pressurized piping and electrical system for easy installation
  • Top or bottom water supply configuration for installation flexibility
  • Certified to EN 15154 and ANSI Z358.1 standards
  • Optional ATEX-rated version available for explosive environments

Technical Specifications

  • Flow rate (drench shower): 76 litres/minute
  • Flow rate (eyewash): 14 litres/minute
  • Flow rate (body spray hose): >14 litres/minute
  • Application: Indoor/Outdoor, freeze-protected
  • Dimensions (H x W x D): 2470 x 460 x 921 mm
  • Water inlet: 1-1/4"
  • Water outlet: None (floor drain recommended)
  • Voltage: 230 VAC
  • Rated power: 150 W

Product Benefits

  • Reliable performance in extreme sub-zero temperatures
  • Engineered for demanding industrial environments
  • Over 1,000 units successfully deployed worldwide
  • Swiss-made quality ensures mechanical reliability
  • ATEX-certified version available for explosive areas

Order Information

  • Item Number: 10004782
  • Country of Origin: Switzerland

Documentation
